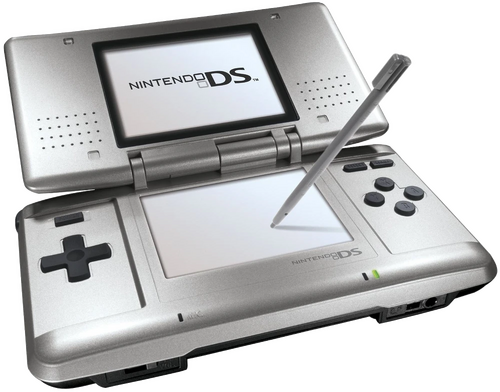

Nintendo DS
From Handhelds Wiki
Jump to navigationJump to search
| Nintendo DS | |
|---|---|
 | |
| Specification | |
| Brand | Nintendo |
| Form Factor | Clamshell |
| SoC | CPU NTR (Nitro) |
| CPU | ARM946E-S @ ~67.028MHz, ARM7TDMI @ ~33.514MHz |
| GPU | N/A (uses the ARM946E-S instead of a dedicated chip) |
| RAM | 4 MB PSRAM (expandable through GBA cartridge slot to 12 MB) |
| Screen Size | 3" (Both) |
| Resolution | 256x192 (Both) |
| Aspect Ratio | 4:3 (Both) |
| Screen Type | TFT LCD |
| Internal Storage | 256 MB (1024 Blocks usable |
| External Storage | None |
| WiFi | Yes |
| Bluetooth | No |
| Video Output | None |
| Speaker | Stereo (32.768kHz, downsampled to 10-bit PWM (-200h to 1FFh)) |
| 3.5mm Audio Jack | Yes |
| Battery | 850 mAh (3.7V) |
| Dimensions | 148.7 mm × 84.7 mm × 28.9 mm (closed) |
| Weight | 275 grams |
| Extras | GBA cart slot |
