Hardware Specification[edit]
| RG40XX H Overview | |
|---|---|
 | |
| Specification | |
| Brand | Anbernic |
| Release Date | July 12, 2024 |
| Form Factor | Horizontal |
| SoC | Allwinner H700 |
| CPU | quad-core ARM Cortex-A53 |
| GPU | Mali-G31 MP2 |
| RAM | 1 GB LPDDR4 |
| Screen Size | 4" |
| Resolution | 640x480 |
| Aspect Ratio | 4:3 |
| Screen Type | IPS screen, OCA full lamination |
| OS | Linux |
| External Storage | 2x microSD |
| WiFi | 2.4/5G WIFI 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 4.2 |
| Video Output | Mini HDMI |
| Speaker | bottom facing |
| 3.5mm Audio Jack | yes |
| Battery | Li-polymer 3200mAh |
| Dimensions | Length 16.3cm; Width 7.9cm; Height 1.6cm |
| Weight | 208g |
| Extras | RGB joystick lighting, vibration motor |
Official Spec Sheet[edit]
RG40XX H Colors[edit]
-
Gray -
Blue -
Black
RG40XX H View From All Sides[edit]

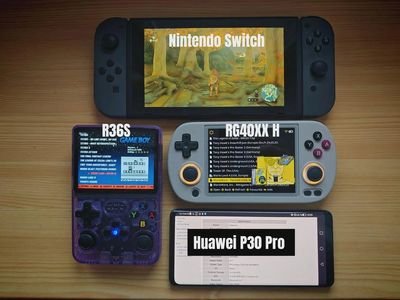

RG40XX H Size Comparison[edit]
RG40XX H Internals[edit]
-
RG40XX H PCB Front - image source -
RG40XX H PCB Back - image source

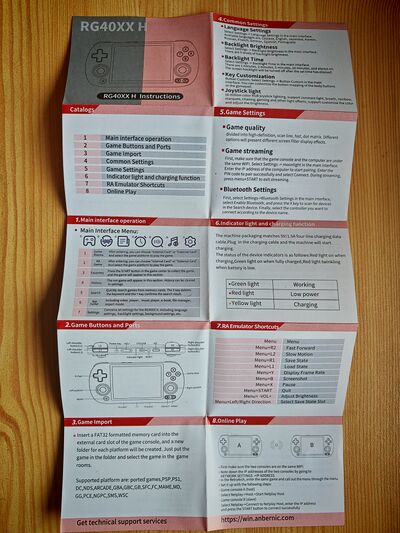

RG40XX H Official Manual[edit]
Battery and Charging[edit]
It's recommended to charge the device with a 5V 1.5A-2A adapter and a USB-A to USB-C cable. Charging via Computer/Laptop USB ports also works fine. Avoid fast-chargers!

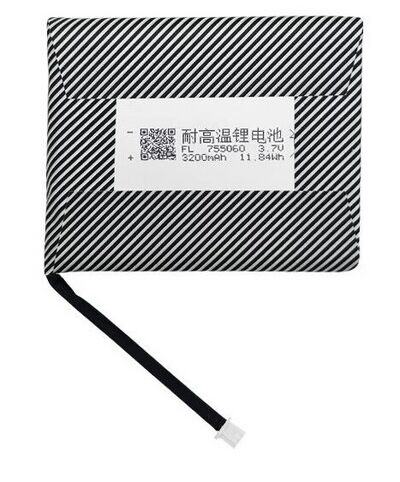

The RG40XX H has a 3200mAh 3.7V Li-polymer battery (type 755060) with a standard 2-pin JST 1.25mm connector.
The battery lasts between 3 to 6 hours, depending on the emulated system.
Included Games / Roms[edit]
Here's a full list of games that get shipped with the device: https://portals.wetransfer.com/portals/52f47f89-12d4-4582-aba5-46f895756a7b
