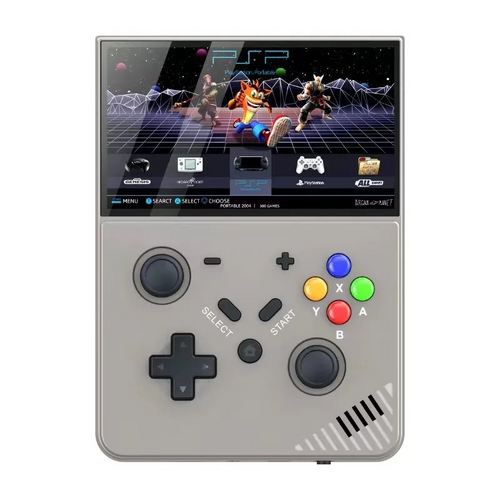

SJGAM M18 / R43 Pro / Xiaobawang Q7

SJGAM M18 / R43 Pro / Xiaobawang Q7
SJGAM M18 / R43 Pro / Xiaobawang Q7

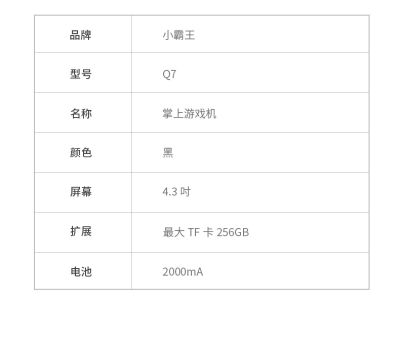

Specification
Brand	SJGAM / Xiaobawang
Release Date	2024
SoC	Rockchip RK3566
CPU	ARM Cortex-A55
GPU	ARM Mali-G52
RAM	1GB
Screen Size	4.3"
Resolution	480x272
Aspect Ratio	16:9
OS	Linux
Battery	4000mAh

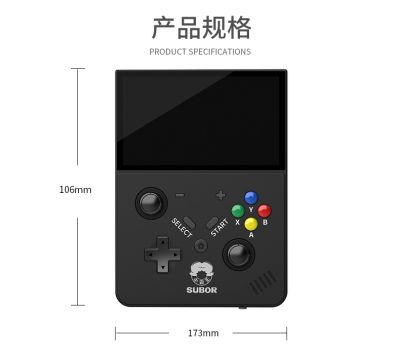

Dimensions	105x145x35mm

Specs[edit]

Price[edit]

~$50

Get the SJGAM M18 / R43 Pro / Xiaobawang Q7: AliExpress¹

↪ Other great handheld deals

¹ _{Buying through these affiliate links helps support the wiki. Your price stays the same. Commissions go toward devices, testing, documentation, and server costs.}

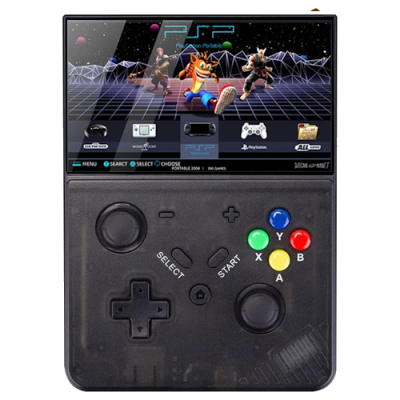

Colors[edit]

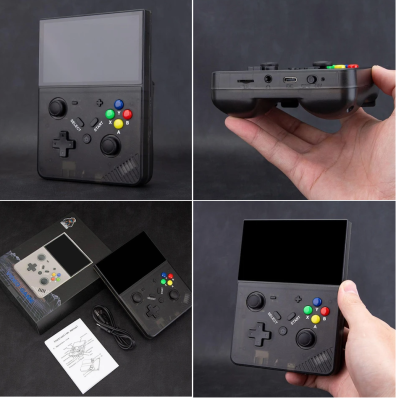

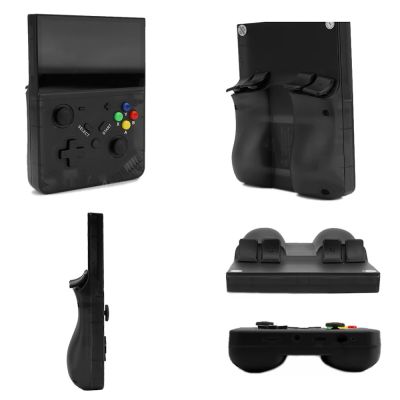

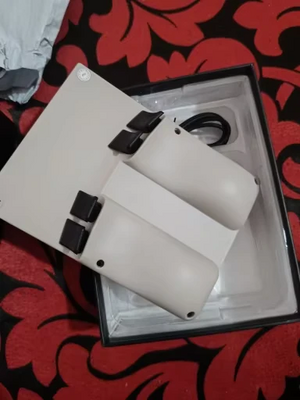

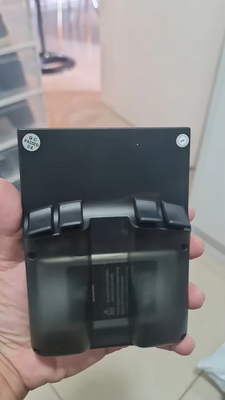

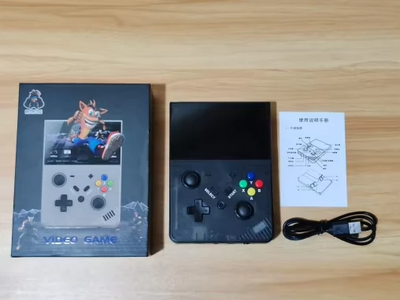

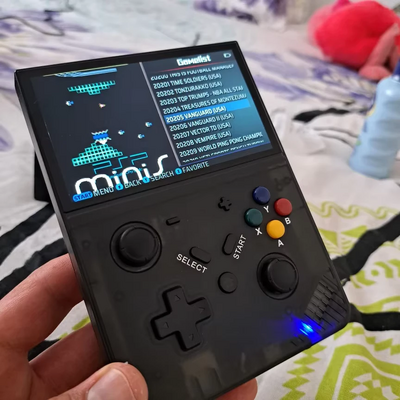

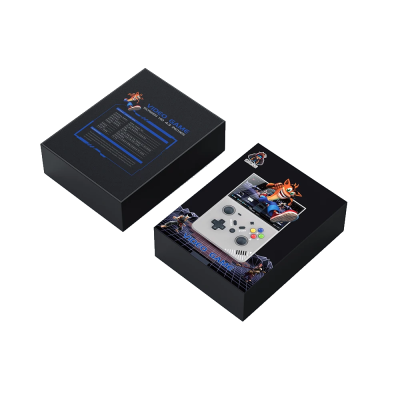

More Images[edit]

More Information[edit]

https://github.com/wll1rah/R43-Pro_handheld

Communities[edit]

reddit r/SBCGaming

Discord - Retro Handhelds

Videos[edit]

Firmware[edit]

Unlocked firmware (fully unlocks RetroArch and other access): download - source

Improvements to the stock firmware: https://github.com/wll1rah/R43-Pro_handheld

From LordAinz from Discord:

How to use the m25 sd card image on the m18/ R43 Pro and m19:

Backup your stock sd card or if you bought one without and sd card you or if you got one without and sd card then go to step 3.
Get a branded quality SD card, such as Sandisk, Samsung, PNY, Silicon Power, Team Group, etc..., That's not a comprehensive list just ones that should be good enough as you'll be limited to about 20MB/s write and 40ish MB/s Read
Download the m25 sd card image from this link: https://drive.google.com/file/d/1_O1ifTW6eaBoBVT_5NUd32RxssrOOCRq/view?usp=drivesdk
Download the https://github.com/wll1rah/R43-Pro_handheld/archive/refs/tags/v0.30.zip this contains empty roms folder or you can copy the roms folder from your factory sd card.
Format your branded quality sd card as exfat, then extract the m25 sd card image to the root of your sd card.
copy the roms folder from your factory sd card or the roms folder from the GitHub repo to the root of your sd card that contains the m25 image.
now place your roms in your in the correct system folder with in the roms folder.
