More mods[edit]

Reddit: Speaker replacement

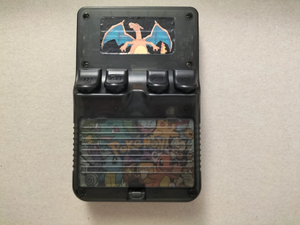

Reddit: Custom battery covers

Reddit: Heatsink and Fan

Battery extender with 2*18650 Li-Ion[edit]

Warning

This modification is unsafe. These 18650 Li-ion batteries can get very hot, possibly softening the plastic and causing catastrophic damage. If these batteries get damaged (e.g., R36S gets dropped and batteries get damaged), it can cause "thermal runaway", reaching internal battery temperatures of up to 1000 degrees celsius. This can nearly instantly kill the console, and can seriously harm you due to burns and toxic fumes. Heatsinks WILL NOT help with this.

Reddit: Battery extender with 2*18650 Li-Ion

Cover for 2 battery 3.7V Lithium 18650 with USB-C charging module.

You need :

1 x 3.7V Lithium Battery Charger 5V 1A 2A Li-ion Lipo Battery Charging Protect

2 x Battery Shrapnel 18650 Battery Spring Positive And Negative Contact (need cut 2 spirale on negative contact)

1x JST 1.25mm PH2.0 XH2.54 2 Pin Male Plug (15cm)

File for 3D Print :

https://cults3d.com/fr/mod%C3%A8le-3d/gadget/18650-cover-for-r36s

You can use this 3500mAh battery to extend your battery to 7000mAh, but temperatures can and will rise, and can have severe battery health impact, alongside other things.

Modding and Teardown Guide[edit]

"Ultimate R36S" by Swimming-Emphasis-91[edit]

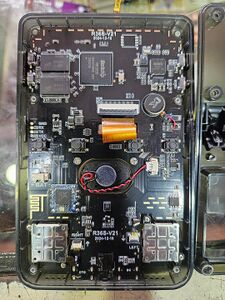

Reddit thread with lots of info and links to parts and guides: My (perhaps) ultimate R36S

Hall-Effect Joysticks

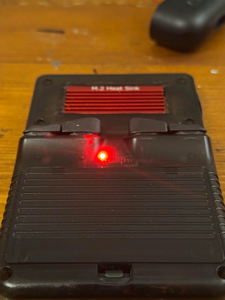

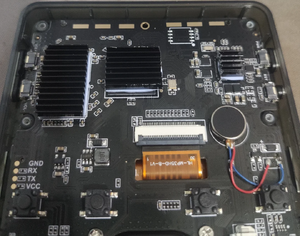

Heatsink
Inbuilt Wi-Fi
Inbuilt Bluetooth
Silence Tactile Buttons
Anatomic Shoulder Buttons
Rumble Motor

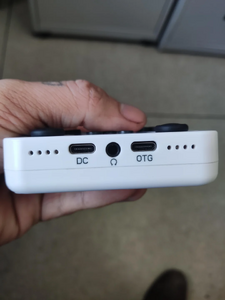

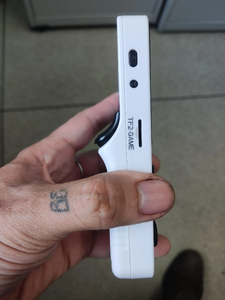

Theme Modification

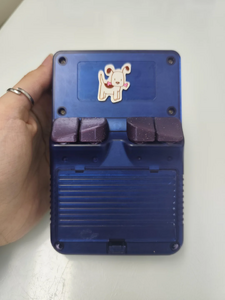

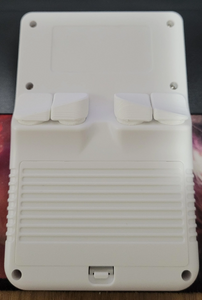

Shoulder Buttons / Noise Reduction[edit]

↪ R36S Shoulder Button Upgrade Tutorial

YouTube: R36S shoulder button noise reduction (silent mod)

Reddit: Epic Foam Mod for R36S - u/sniper257

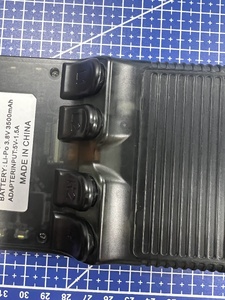

Reddit: Trigger and Face Button Fix/Membranes - u/potatowalrus

Reddit: Solder new tactile/silent switches - u/kakashihokage

Reddit: What kind of tactile switches does the R36S use

D-pad and Buttons Fix / Improvement[edit]

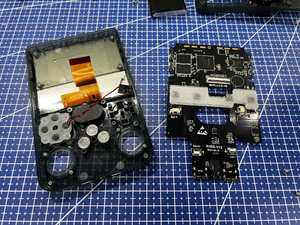

YouTube: R36S Teardown & DPAD/Button Fix

YouTube: R36S D-pad: 3-minute Fix Challenge

YouTube: R36S Disassembly Tips - Improve Buttons

Joystick Mods[edit]

YouTube: R36S | Hall-Effect Joystick Upgrade | Tutorial

YouTube: Change / Upgrade R36S Controls: Hall Effect

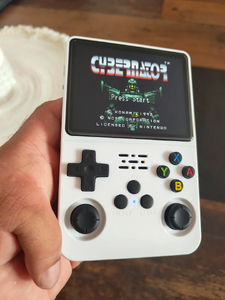

Reddit: Small Upgrade of Analog Sticks - u/Fusko24

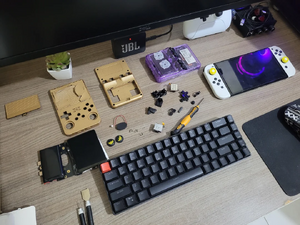

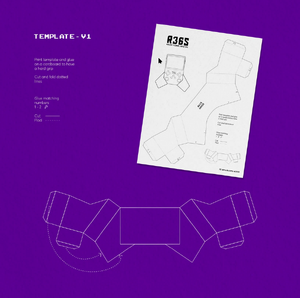

CAD Models and 3D Printing Files[edit]

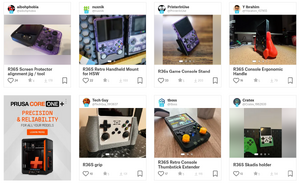

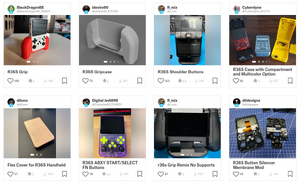

Printables: Lots of Different 3D Models on Printables.com

Printables: R36S Reference CAD Model

Printables: R36S Shoulder Buttons

Reddit: Better Buttons for R36S - u/Snoo74895

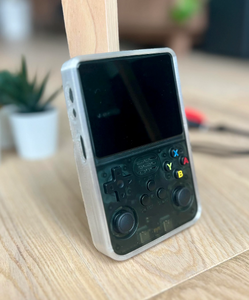

Reddit: Case and Clip on Screen Cover - u/potatowalrus

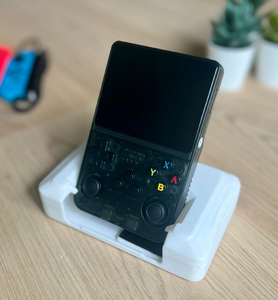

Reddit: R36S 3 in 1 Case Grip - u/potatowalrus

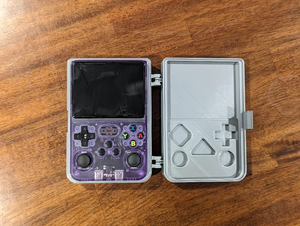

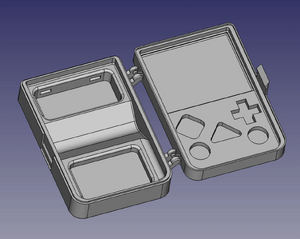

Reddit: R36S Case - u/doggyworld4082

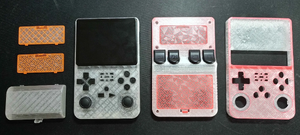

Reddit: Full Case Replacement for R36S - firezenk

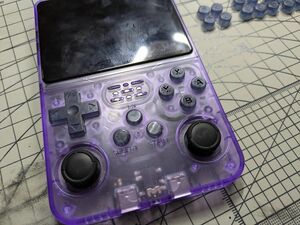

Reddit: Improved Buttons - aggrohaze88

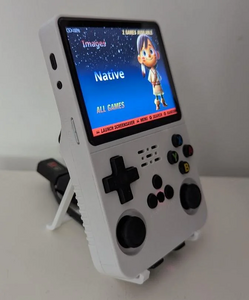

Reddit: 3D Printed Handheld Stand - dovgro

Reddit: PowerUp - 2BitePie

Reddit: Free R36S D-Pad Collection - firezenk

Internal WiFi Mods[edit]

Reddit: WiFi Mod

YouTube: R36s Internal WiFi Mod - Detailed Description and Device Teardown

Wi-Fi Module on the V21 Board[edit]

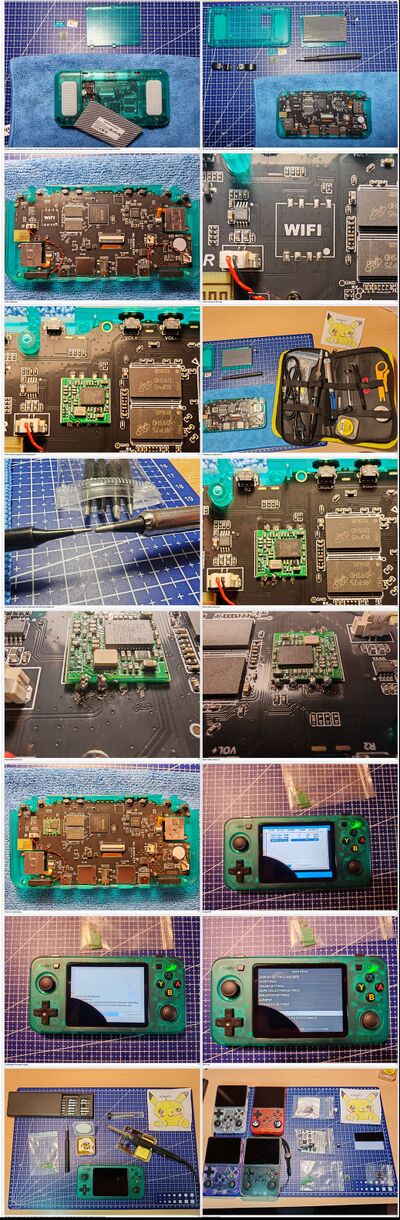

↪ R36S/R36H Internal WiFi Mod

Reddit: Soldered WiFi Module on the V21 Board - u/alexbaiken

Rumble / Vibration Motor[edit]

Reddit: Rumble/Vibration in R36S - u/KST-aka-Giga_Chad

Reddit: Rumble Motor, Heatsink and Wrist Cord - u/paulosincos

Reddit: R35S / R36S Vibration Motor Mod

YouTube: Enable RUMBLE / VIBRATION on R36S and R35S for $1!

Internal USB UART Console Mod[edit]

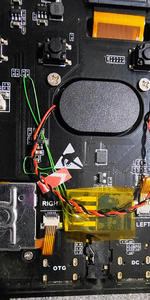

In a very hacker‑friendly move, the manufacturer provided test points for the USB D⁺/D⁻ data lines of the charging port on the PCB. This allows you to add internal USB hardware that can be connected to a PC by plugging a normal USB‑A‑to‑C cable into the charging port (which will still charge the R36S at the same time). The test points are on the “bottom” side of the PCB; you have to remove the board from the case to access them.

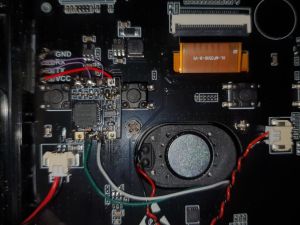

I used this to add a USB‑UART adapter that gives convenient access to the serial console (this will, for some people/situations, be more convenient than plugging in a USB keyboard or using Wi‑Fi + SSH).

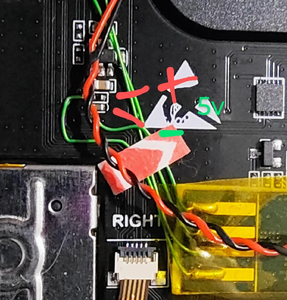

I opted for a tiny USB‑UART module from AliExpress because it’s neater, but you can also remove the USB connector of any other one. Beware that the UART side must use 3.3 V signals (not 5 V). This pulls the 3.3 V power supply from the UART test points on the R36S (note that I set the jumper on the module to 3 V input), which has the downside that the USB device only registers on the host when the R36S is powered up. If I were to do this again, I would find a point to grab the 5 V supply from the charging port instead.

Heatsink Mods[edit]

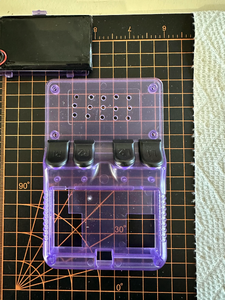

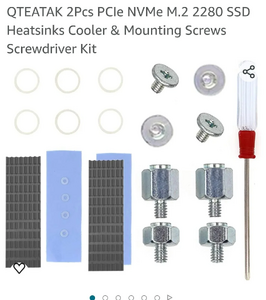

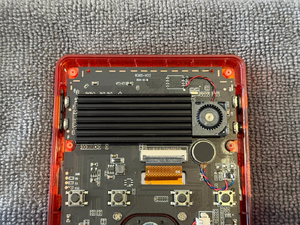

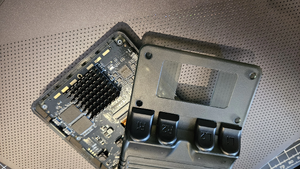

The R36S handheld can get pretty toasty during marathon gaming sessions, but a few clever cooling tricks can keep it chill. Whether you add some copper sheets, thermal pads, and extra vent holes for passive heat‑spreading or an active cooling fan, these low‑cost mods make a big difference—and your games stay smooth without the sweat.
